[Jaspersoft Studio] Jasper Report InteliJ 연동 Gradle (5)

환경부터 소개하겠다 간단하게.
Spring Boot - InteliJ 툴
빌드 Gradle
Swagger 테스트
ms-sql



1. 우선은 build.gradle 에 들어가서 dependecies에 해당 외부 라이브러리를 추가한다 .

    // 나머지 라이브러리는 word, excel ,pdf 를 다운로드 받기 위해 선언.
    implementation 'net.sf.jasperreports:jasperreports:6.21.5' // jasper 버전
    implementation 'com.github.librepdf:openpdf:1.3.30'

    implementation 'org.apache.poi:poi-ooxml:5.2.3'
    implementation 'org.apache.poi:poi-ooxml-schemas:4.1.2'

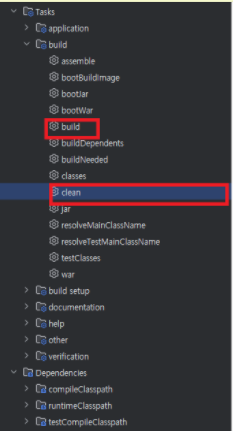

2. 이후 clean -> build 순서대로 클릭 . (gradle 환경설정이 되어있는 프로젝트라 가정)



3.resource Pakage에 jrxml 폴더 및 파일 생성 기존 mapper에 생성말고 따로 패키지를 만들자.report-> ㅁㅁ -> .jrxml 파일 생성

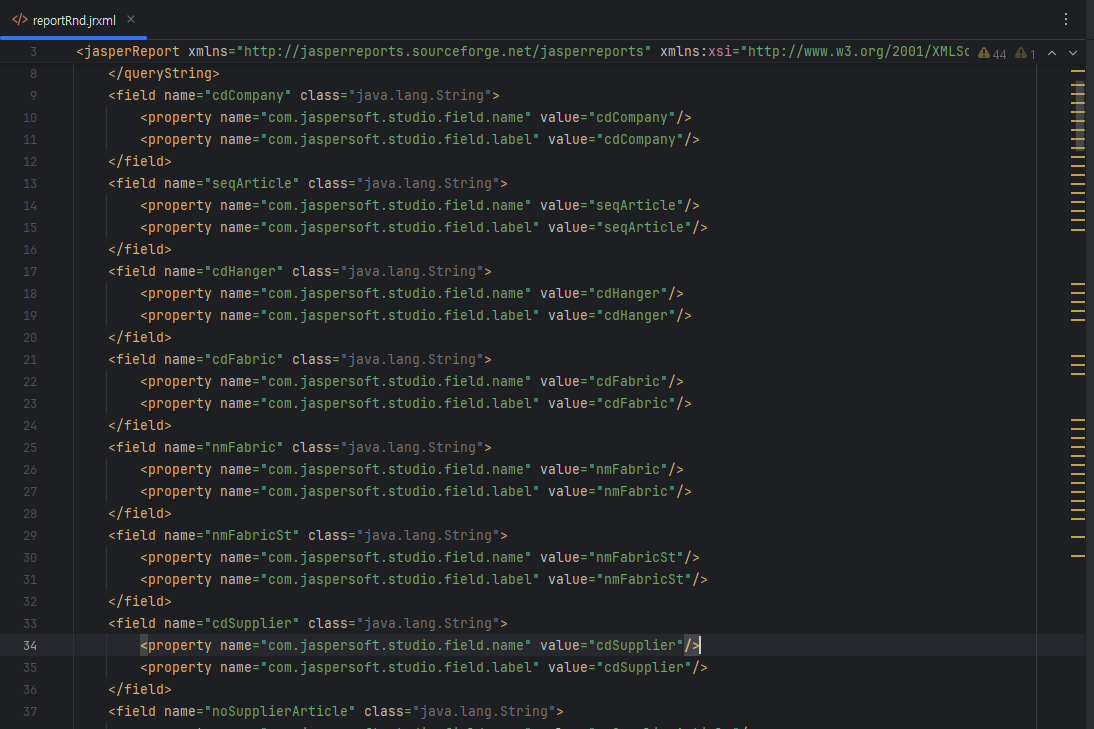

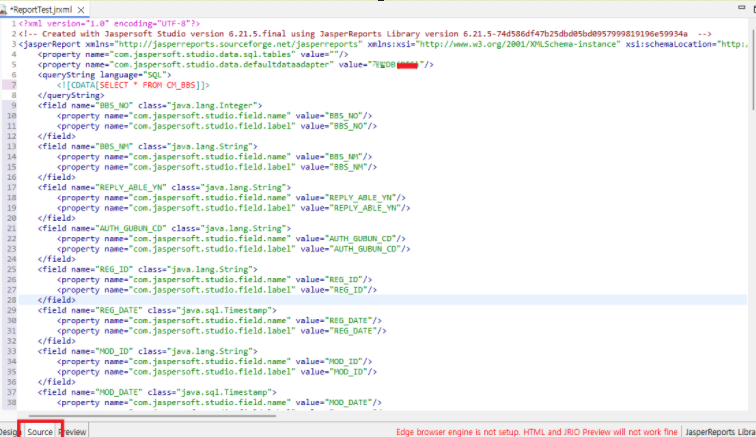

4. Jasper Report 에서 만든 파일 -> source로 이동 후 복사 -> 이후 jxrml파일에 붙여넣기 -> 이떄 Value값이 DTO에 값이 된다. 그러므로 카멜케이스형식으로 value값을 변경해줘야한다 !!!

5. Controller 생성

package com.test.gw.controller.reports;

import com.test.gw.model.rnd.RndArticleReq;
import com.test.gw.service.reports.ReportsService;
import lombok.RequiredArgsConstructor;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;

@RestController
@RequiredArgsConstructor
@RequestMapping("/api/in/reports")
public class ReportsController {

    private final ReportsService reportsService;

    @PostMapping(value = "/rnd/article/export")
    public ResponseEntity<byte[]> exportRndArticleReport(@RequestBody RndArticleReq req) {
        return reportsService.exportReport("rndArticleReportGenerator", req.getDocType(), req);
    }
}

6. Service 생성

package com.test.gw.service.reports;

import org.springframework.core.io.ByteArrayResource;
import org.springframework.core.io.Resource;
import org.springframework.http.HttpHeaders;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Service;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

@Service
public class ReportsService {

	private final Map<String, ReportGenerator> generatorMap;

	/**
	 * ReportGenerator 구현체를 수집하여 Map에 저장
	 */
	public ReportsService(List<ReportGenerator> generators) {
		this.generatorMap = new HashMap<>();
		for (ReportGenerator generator : generators) {
			String beanName = generator.getClass().getAnnotation(Service.class).value();
			if (beanName == null || beanName.isBlank()) {
				throw new IllegalArgumentException("ReportGenerator 구현체에는 @Service(\"beanName\")로 식별자 지정이 필요합니다.");
			}
			generatorMap.put(beanName, generator);
		}
	}

	/**
	 * 공통 리포트 export 처리
	 * @param reportType: generator의 bean name
	 * @param docType: "pdf" 또는 "excel"
	 * @param dto: 리포트 생성에 필요한 요청 객체
	 */
	public ResponseEntity<byte[]> exportReport(String reportType, String docType, Object dto) {
		ReportGenerator generator = generatorMap.get(reportType);
		if (generator == null) throw new IllegalArgumentException("등록되지 않은 reportType: " + reportType);

		byte[] fileBytes = generator.generate(docType, dto);

		String extension;
		MediaType mediaType;

		if ("excel".equalsIgnoreCase(docType)) {
			extension = "xls"; // 기존 유지
			mediaType = MediaType.APPLICATION_OCTET_STREAM;
		} else if ("word".equalsIgnoreCase(docType)) {
			extension = "docx";
			mediaType = MediaType.parseMediaType(
					"application/vnd.openxmlformats-officedocument.wordprocessingml.document"
			);
		} else {
			extension = "pdf";
			mediaType = MediaType.APPLICATION_PDF;
		}

		String fileName = reportType + "_report." + extension;

		return ResponseEntity.ok()
				.contentType(mediaType)
				.header(HttpHeaders.CONTENT_DISPOSITION, "attachment; filename=\"" + fileName + "\"")
				.body(fileBytes);
	}


	/**
	 * Resource 형태로 반환할 경우 (프론트에서 Blob 처리 없이 iframe/open 등으로 사용 시)
	 */
	public ResponseEntity<Resource> exportReportAsResource(String reportType, String docType, Object dto) {
		ReportGenerator generator = generatorMap.get(reportType);
		if (generator == null) throw new IllegalArgumentException("등록되지 않은 reportType: " + reportType);

		byte[] fileBytes = generator.generate(docType, dto);

		String extension;
		MediaType mediaType;

		if ("excel".equalsIgnoreCase(docType)) {
			extension = "xls";
			mediaType = MediaType.APPLICATION_OCTET_STREAM;
		} else if ("word".equalsIgnoreCase(docType)) {
			extension = "docx";
			mediaType = MediaType.parseMediaType(
					"application/vnd.openxmlformats-officedocument.wordprocessingml.document"
			);
		} else {
			extension = "pdf";
			mediaType = MediaType.APPLICATION_PDF;
		}

		String fileName = reportType + "_report." + extension;

		return ResponseEntity.ok()
				.contentType(mediaType)
				.header(HttpHeaders.CONTENT_DISPOSITION, "attachment; filename=\"" + fileName + "\"")
				.body(new ByteArrayResource(fileBytes));
	}
}

7. 6번에서 호출한 service 즉 공통함수를 만들자.

package com.test.gw.service.reports;

// interface 생성
public interface ReportGenerator {
    byte[] generate(String docType, Object dto);
}



8.interface와 연결해주는 객체 생성

package com.test.gw.service.reports;

import com.test.gw.model.rnd.RndArticleAllListRes;
import com.test.gw.model.rnd.RndArticleReq;
import com.test.gw.model.rnd.RndArticleRes;
import com.test.gw.service.rnd.RndService;
import lombok.RequiredArgsConstructor;
import net.sf.jasperreports.engine.*;
import net.sf.jasperreports.engine.data.JRBeanCollectionDataSource;
import net.sf.jasperreports.engine.export.JRXlsExporter;
import net.sf.jasperreports.engine.export.ooxml.JRDocxExporter;
import net.sf.jasperreports.export.SimpleDocxReportConfiguration;
import net.sf.jasperreports.export.SimpleExporterInput;
import net.sf.jasperreports.export.SimpleOutputStreamExporterOutput;
import net.sf.jasperreports.export.SimpleXlsReportConfiguration;
import org.springframework.core.io.ClassPathResource;
import org.springframework.stereotype.Service;

import java.io.ByteArrayOutputStream;
import java.io.InputStream;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

@Service("rndArticleReportGenerator")
@RequiredArgsConstructor
public class RndArticleReportGenerator implements ReportGenerator {

    private final RndService rndService;

    @Override
    public byte[] generate(String docType, Object dto) {
        try {
            RndArticleReq req = (RndArticleReq) dto;

            RndArticleAllListRes result = rndService.getRndArticleAllList(req);
            List<RndArticleRes> articleList = result.getRndArticleList();

			// resource 경로를 정확히 입력
            InputStream jrxmlInput = new ClassPathResource("com/test/gw/reports/rnd/reportRnd.jrxml").getInputStream();
            JasperReport jasperReport = JasperCompileManager.compileReport(jrxmlInput);

            Map<String, Object> parameters = new HashMap<>();
            parameters.put("reportTitle", "기본 정보");

            JRBeanCollectionDataSource dataSource = new JRBeanCollectionDataSource(articleList);
            JasperPrint print = JasperFillManager.fillReport(jasperReport, parameters, dataSource);

            if ("excel".equalsIgnoreCase(docType)) {
                return exportToExcel(print);
            } else if ("word".equalsIgnoreCase(docType)) {
                return exportToDocx(print);
            } else {
                return JasperExportManager.exportReportToPdf(print);
            }
        } catch (Exception e) {
            throw new RuntimeException("RndArticle 리포트 생성 중 오류 발생", e);
        }
    }

    private byte[] exportToDocx(JasperPrint print) throws JRException {
        ByteArrayOutputStream out = new ByteArrayOutputStream();

        JRDocxExporter exporter = new JRDocxExporter();
        exporter.setExporterInput(new SimpleExporterInput(print));
        exporter.setExporterOutput(new SimpleOutputStreamExporterOutput(out));

        SimpleDocxReportConfiguration config = new SimpleDocxReportConfiguration();
        // 필요 시 옵션들 (선택)
        // config.setFlexibleRowHeight(true);
        // config.setFramesAsNestedTables(true);
        exporter.setConfiguration(config);

        exporter.exportReport();
        return out.toByteArray();
    }
    /**
     * JasperPrint → Excel (.xls) 변환
     */
    private byte[] exportToExcel(JasperPrint print) throws JRException {
        ByteArrayOutputStream xlsOutput = new ByteArrayOutputStream();

        JRXlsExporter exporter = new JRXlsExporter();
        exporter.setExporterInput(new SimpleExporterInput(print));
        exporter.setExporterOutput(new SimpleOutputStreamExporterOutput(xlsOutput));

        SimpleXlsReportConfiguration config = new SimpleXlsReportConfiguration();
        config.setOnePagePerSheet(false);
        config.setDetectCellType(true);
        config.setWhitePageBackground(false);
        config.setRemoveEmptySpaceBetweenRows(true);
        exporter.setConfiguration(config);

        exporter.exportReport();
        return xlsOutput.toByteArray();
    }
}

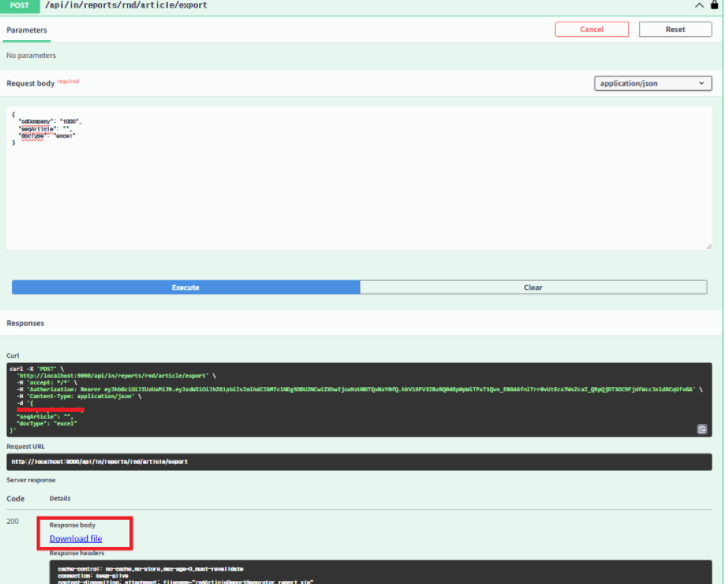

9. Request와 Response DTO는 각자 DB에 맞춰 생성해주자 . (테스트 결과) 테스트는 swagger



jrxml파일을 백엔드 서버와 연결을 해봤다 . spring boot 에 inteliJ툴을 사용하였고 빌드는 gradle 그리고 테스트는 swagger로 진행하였다.
